With the most popular table size in the industry, the X9 is best suited for a wide range materials available on the market. It focuses on the intelligent cutting of non-metallic material into different designs. It can quickly complete various operations, such as full-cutting, half-cutting, boring and milling, punching, creasing, and marking. Equipped with automatic router bit changer and automatic knife initialisation easily solve production efficiency problems like those found in sample-making and batch production.
TPS automation

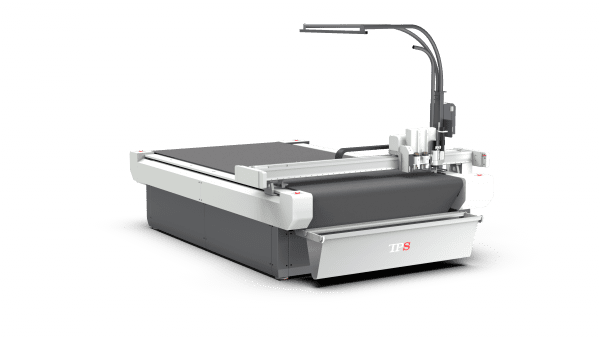

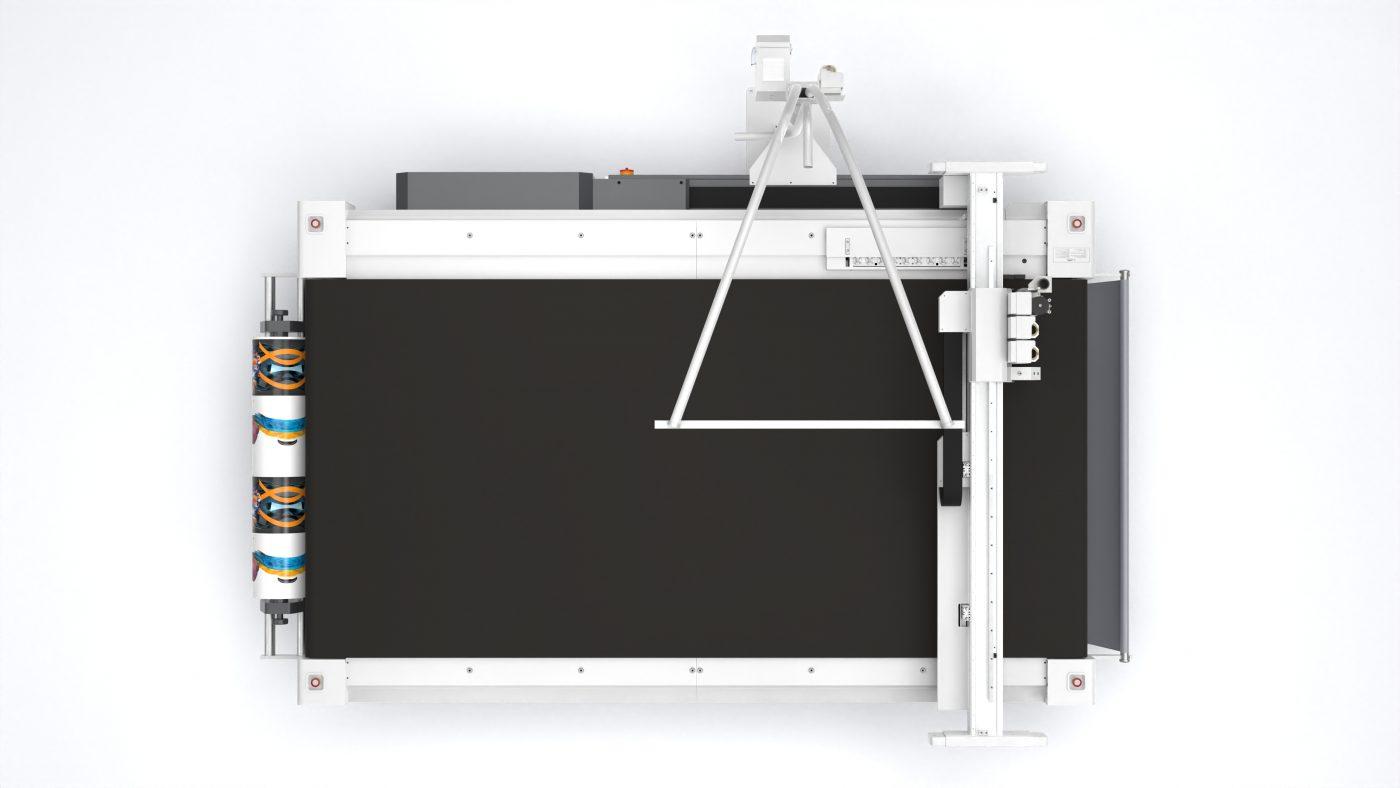

Digital cutting machine X9
Compact, heavy duty, and economical
Modular design
X9 2516 is new modular design digital cutting machine with different size option available.
1.8KW router option
1.8kw router module up to 60000 RPM, water cooling and air cooling, pneumatic clamping system, dust extraction ensures clean working conditions and impeccable edge quality
Automatic router bit changer

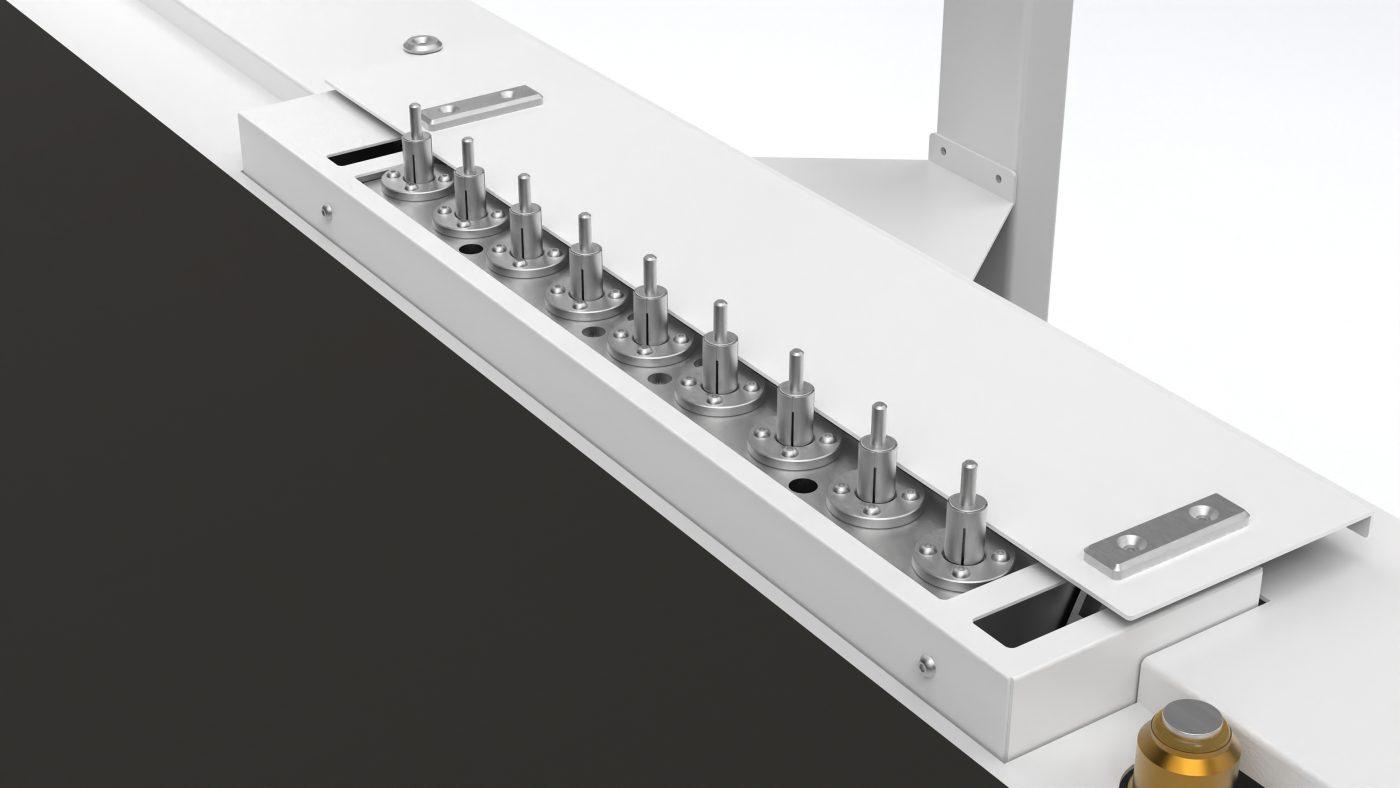

The X9 cutter is equipped with a pneumatic clamping system. Together with the ARC, which can hold up to 9 router bits, this enables fully automated routing even with jobs that require different bit types and diameters.

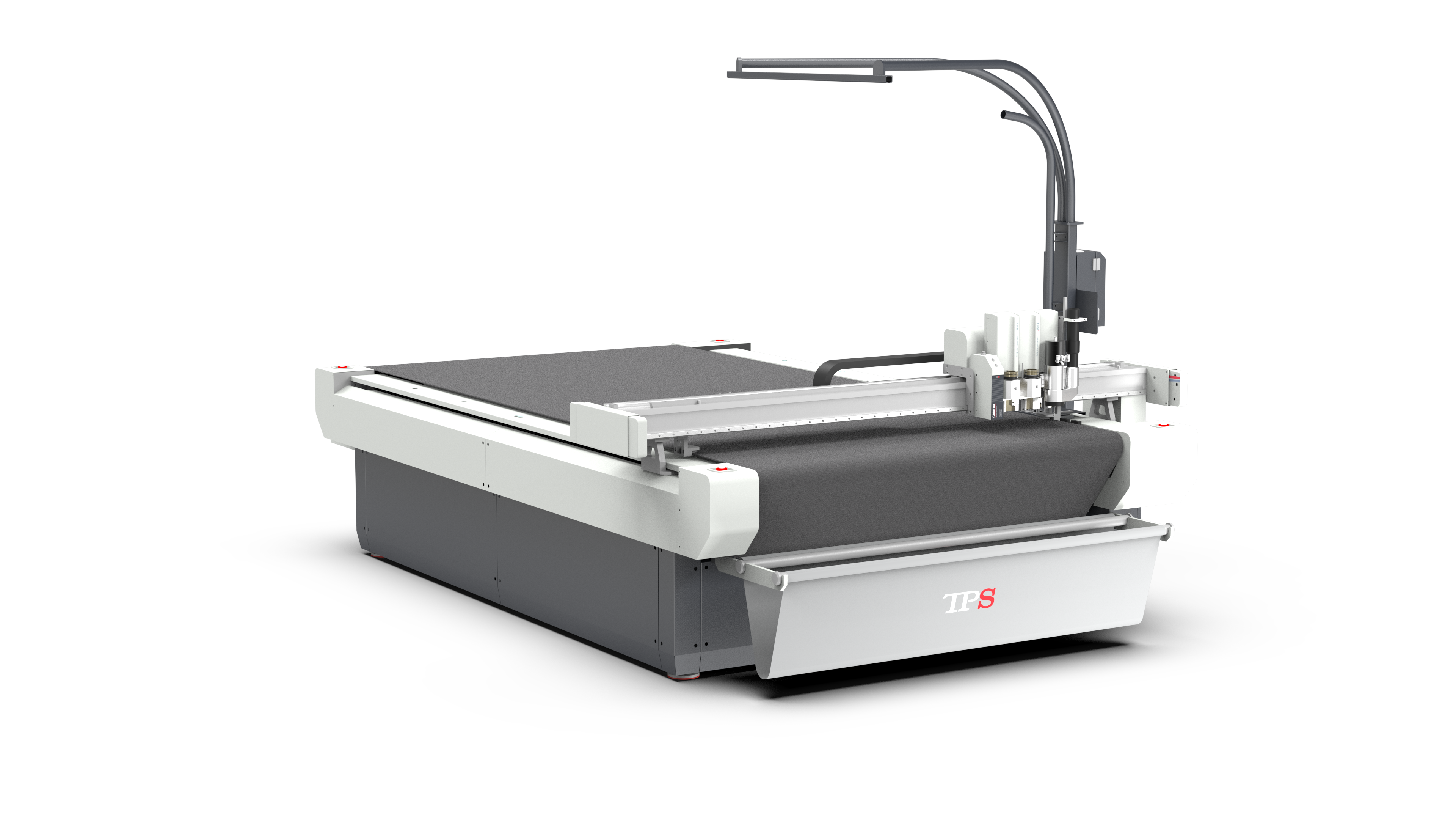

TPS X9 digital cutting machine
A powerful and versatile flatbed cutting system

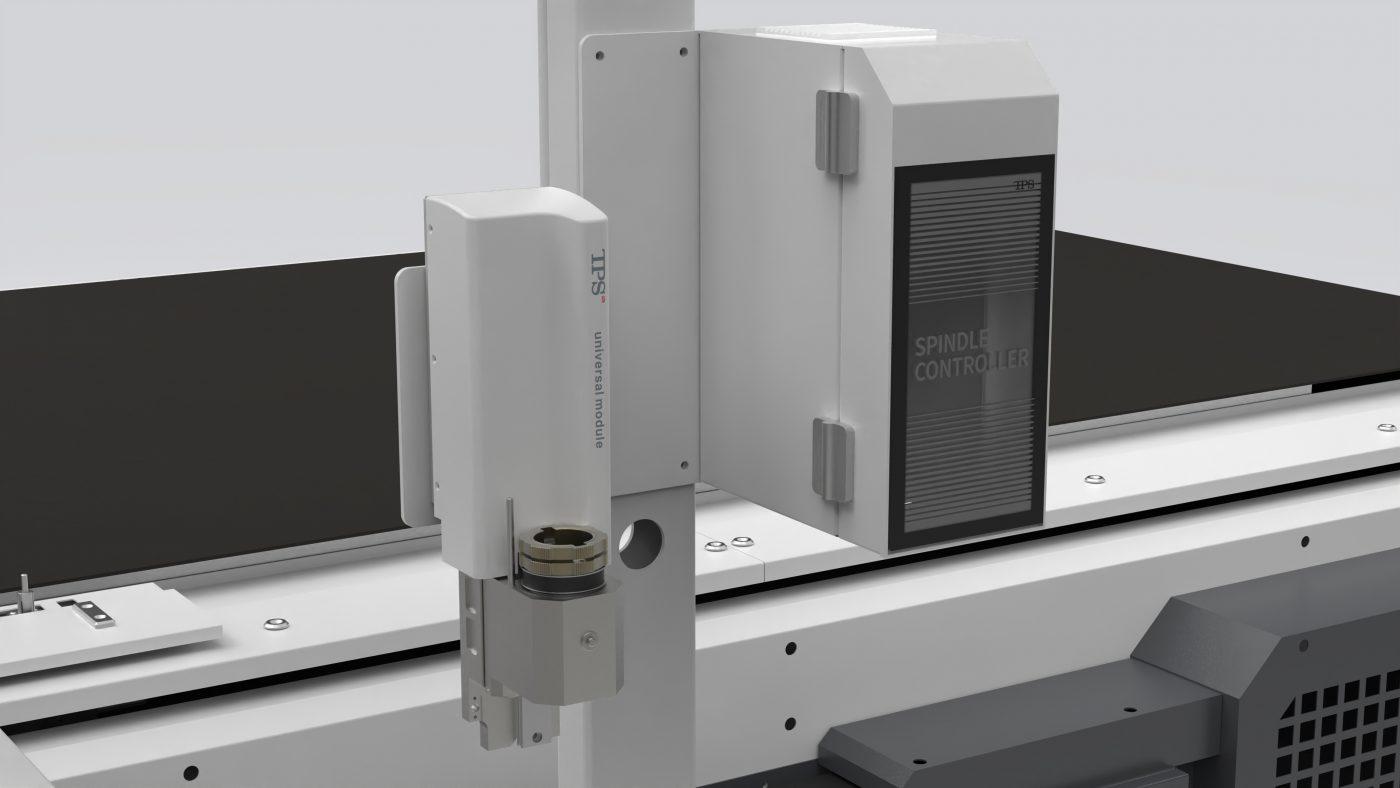

Two universal cutting head applied for different cutting tools and one individual 1.8kw router head
The flatness of the tabletop is detected by a high-precision distance detector, and the tabletop is corrected in real time by software to avoid the inconsistent cutting depth caused by the inconsistency between the tabletop and the tool drop, ensuring perfect cutting result.
Pressure sensitive and laser sensitive automatically knife initiallization tool makes changing knife blades and router bits much safer and faster because operator errors in connection with such changes are eliminated.
We design upgradability
X9 digital cutting machine adopts independent developed professional cutting CAM software, with functions of tabletop compensation, automatic edge-finding and positioning, over cutting optimization, multi-task and multi-station cycle cutting, small vision positioning, large vision positioning, projection positioning, laser mapping positioning, cost estimation, file management, etc

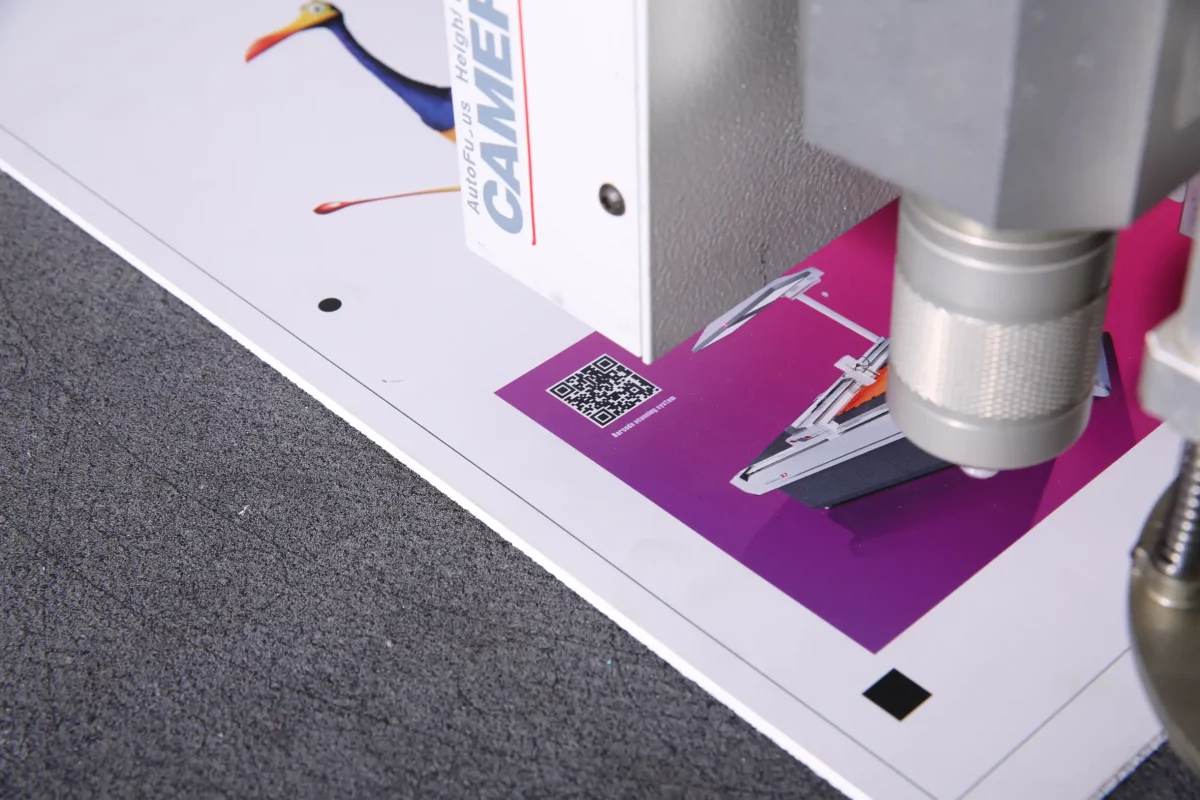

HD CCD camera
High resolution Hikvision industrial camera
1. FPS: 173
2. Interface: Gigabit Ethenet
3. FA camera lens
Numbers
The customer is very important, the customer will be followed by the customer. So we care about all of our valued customer.
58
countries covered
2500
unit machines installed
365
days support
Specifications
Key features of X7 digital cutter
General
- Equipment power: 2.5kw
- Vacuum pump power: 7.5/8.6kw
- Capacity: 220V/ 380W 3 phase
- Interface: USB/ PCIE Slot
Dimensions
- Overall dimension : 4040x3273x2630mm
- Working area: 1600x2500mm
- Maximum material size: 1700x3000mm
- Beam height: 60mm
Others
- Product weight: 1800 kgs
- Maximum material processing height: 60mm
- Maximum processing speed: 72m/ min
- Vacuum zone: 6
Safety anti-collision mechanism
TPS digital cutting machine is equipped with a safety light curtain sensor and a mechanical anti- collision mechanism to prevent the device from damaging personnel during high- speed operation.
Laser mapping positioning function
Users can use the laser mapping and positioning function to map various shapes of the material, and the user can place the patterns to be processed into mapping range for precise cutting, which greatly improves the utilization of the material.
Large Vision Positioning System
Since the flexible material may be deformed by the factors such as temperature, humidity, ink, pressure, stretching, wrinkles, etc., the original document outline cannot be used to accurately cut the actual pattern, we use the function of the high- precision camera’s real-time shooting and contour extraction, thus to accurately identify and extract real-time work piece image contours for precise nesting.
Projection Positioning System
In actual cutting process, it is difficult for users to accurately align the material with the cutting pattern. This system can project the cutting pattern on the processing table with 1:1, which is convenient for users to feed feed and align the material. The user can also place the irregular material into the projection area for the alignment cutting, which greatly improves the utilization of the material.
Prevent over-cutting function
Preventing inner angles from over- cut, recovering graphic’s outline maximally.

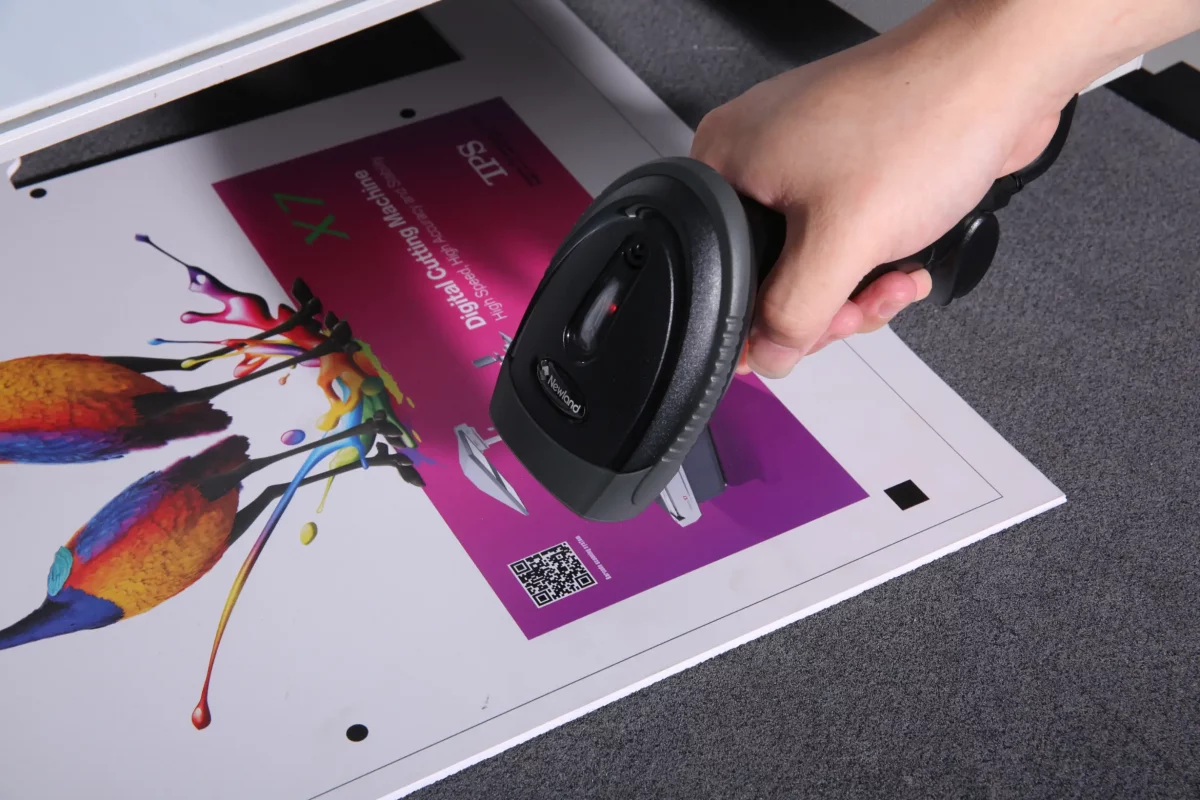

File Management System
X9 CAM software for sealing industry can manage the processed documents including file name, processing time, quantity, materials, batches, etc., and generate barcode or QR code, which can be quickly called out by scanning code. It is convenient for future re- processing. The management of historic processed documents greatly facilites users for operation.

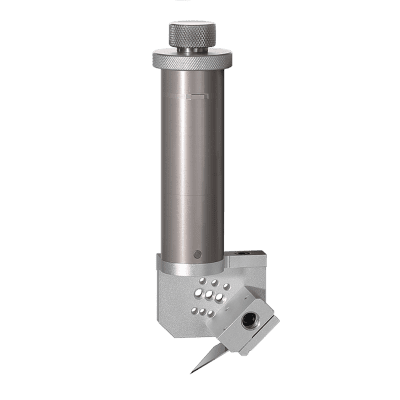

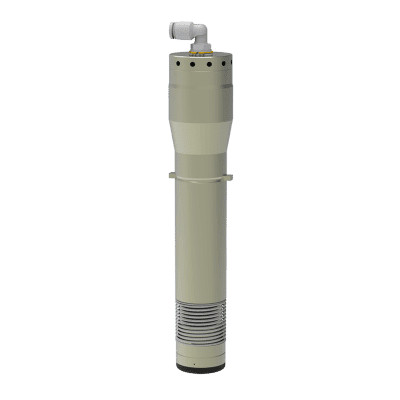

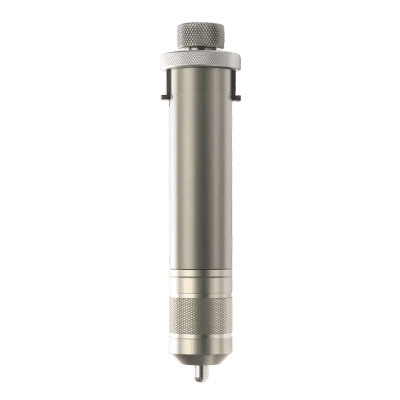

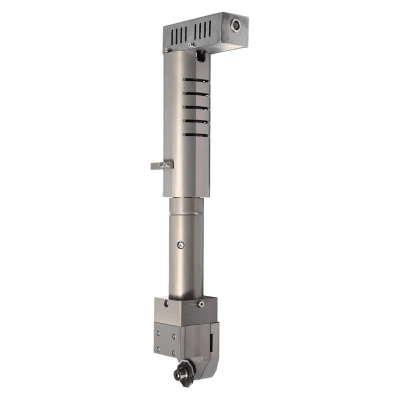

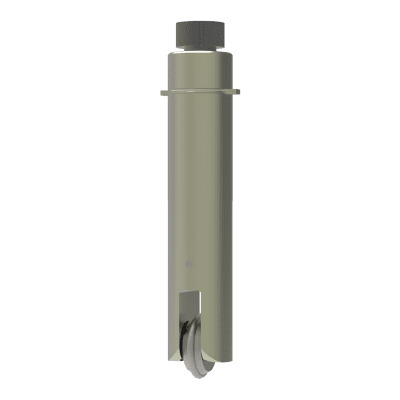

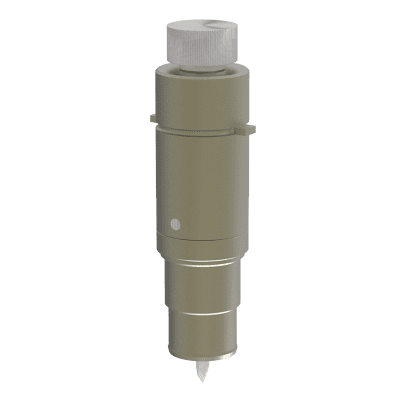

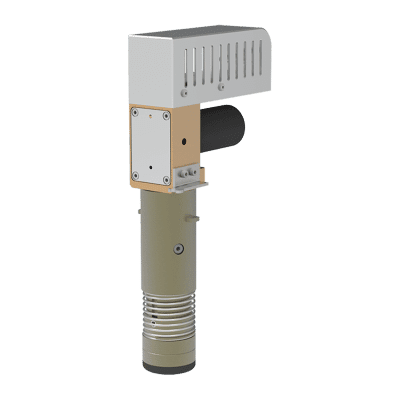

Available tools
