X7 digital cutting machine adopts independent developed professional cutting CAM software, with functions of tabletop compensation, automatic edge-finding and positioning, over cutting optimization, multi-task and multi-station cycle cutting, small vision positioning, large vision positioning, projection positioning, laser mapping positioning, cost estimation, file management, etc.
TPS automation
Digital cutting machine X7
Compact, heavy duty, and economical
Heavy duty welded frame
Heavy duty welded frame which is 30%+ more weight than competitors, this make machine running at increased acceleration & cutting speeds.
6 individual vacuum zones
The work surface is divided into six zones for the TPS X7 2516 model, each zone could be controlled by individual selection in TPScuttingstudio.
Versatility
TPS offers two interchangeable tool modular which allows you to switch between routing, knife-cutting and kiss-cutting easily.

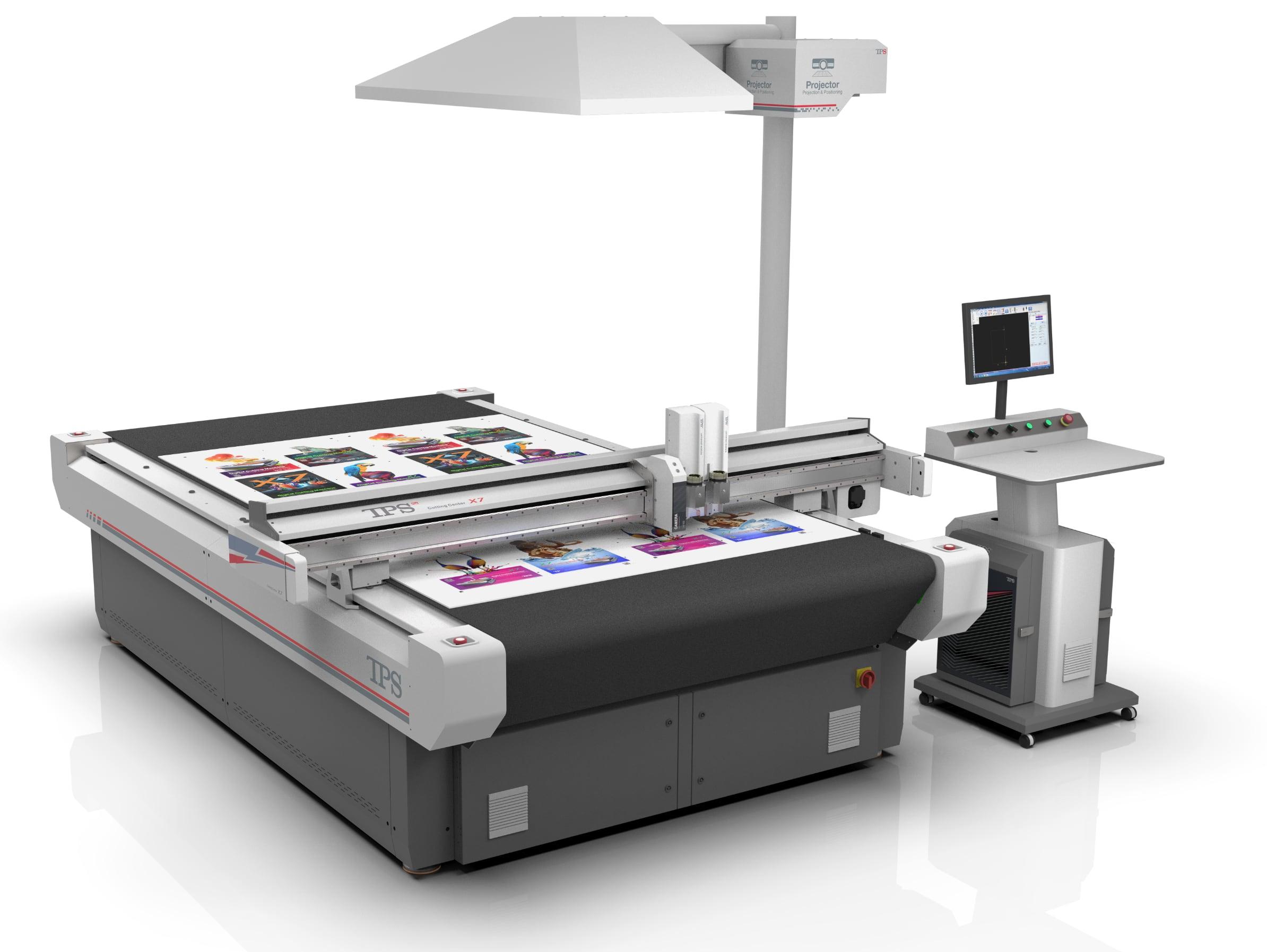

TPS X7 digital cutting machine
A powerful and versatile flatbed cutting system
X7 digital cutting machine adopts high-strength honeycomb aluminum adsorption tabletop with six- zone independent adsorption structure with good flatness and no deformation.
The flatness of the tabletop is detected by a high-precision distance detector, and the tabletop is corrected in real time by software to avoid the inconsistent cutting depth caused by the inconsistency between the tabletop and the tool drop, ensuring perfect cutting result.

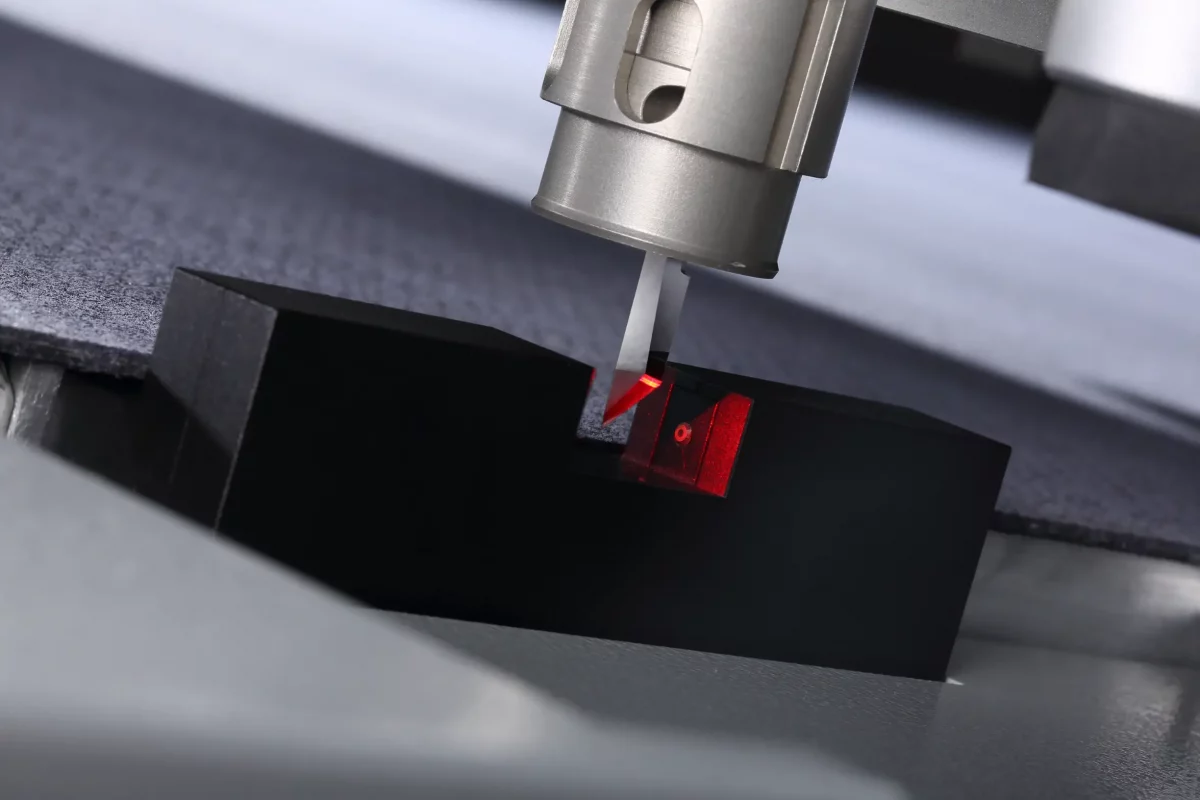

The X7 digital cutter equipped with fiber laser tools calibrating device, it guarantees a safe work environment and is compliant to worldwide health and safety requirements.
We design upgradability
X7 digital cutting machine adopts independent developed professional cutting CAM software, with functions of tabletop compensation, automatic edge-finding and positioning, over cutting optimization, multi-task and multi-station cycle cutting, small vision positioning, large vision positioning, projection positioning, laser mapping positioning, cost estimation, file management, etc
HD CCD camera
High resolution Hikvision industrial camera
1. FPS: 173
2. Interface: Gigabit Ethenet
3. FA camera lens
Numbers
The customer is very important, the customer will be followed by the customer. So we care about all of our valued customer.
58
countries covered
2500
unit machines installed
365
days support
Specifications
Key features of X7 digital cutter
General
- Equipment power: 2.5kw
- Vacuum pump power: 7.5/8.6kw
- Capacity: 220V/ 380W 3 phase
- Interface: USB/ PCIE Slot
Dimensions
- Overall dimension : 4040x3273x2630mm
- Working area: 1600x2500mm
- Maximum material size: 1700x3000mm
- Beam height: 60mm
Others
- Product weight: 1500 kgs
- Maximum material processing height: 30mm
- Maximum processing speed: 72m/ min
- Vacuum zone: 6
Safety anti-collision mechanism
TPS digital cutting machine is equipped with a safety light curtain sensor and a mechanical anti- collision mechanism to prevent the device from damaging personnel during high- speed operation.
Laser mapping positioning function
Users can use the laser mapping and positioning function to map various shapes of the material, and the user can place the patterns to be processed into mapping range for precise cutting, which greatly improves the utilization of the material.
Large Vision Positioning System

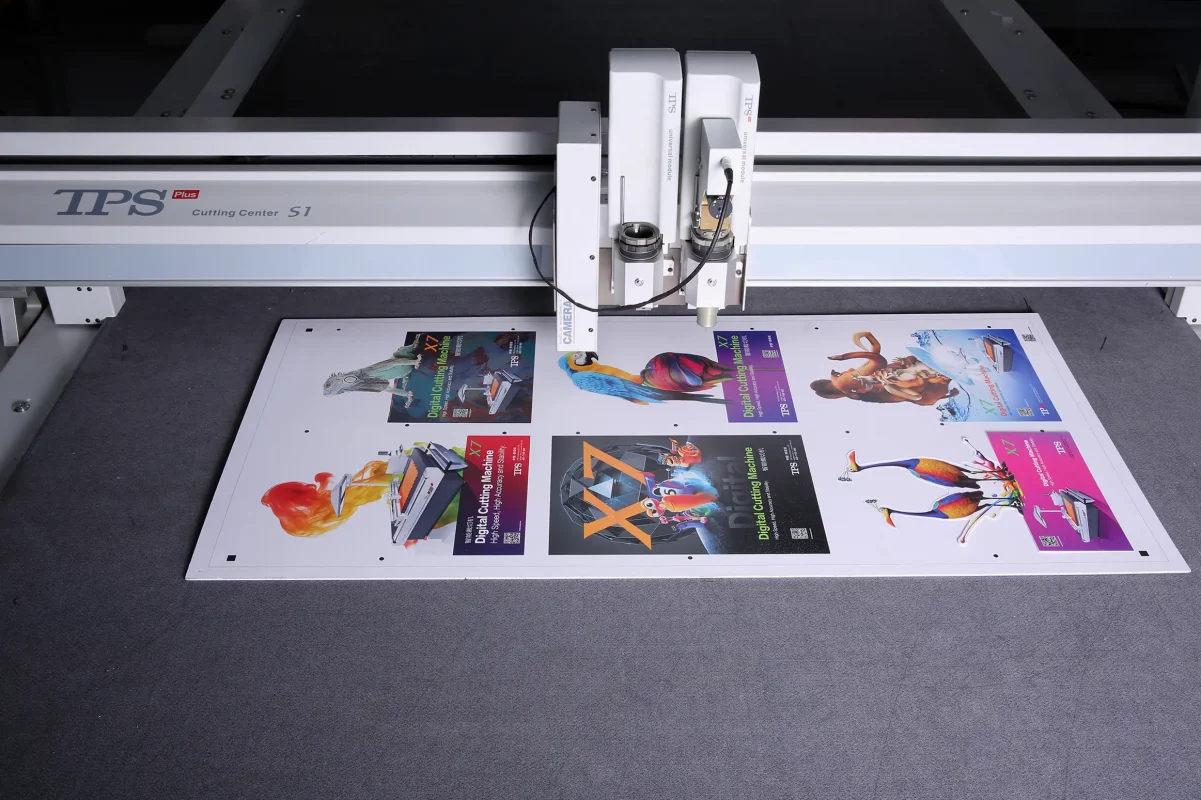

Since the flexible material may be deformed by the factors such as temperature, humidity, ink, pressure, stretching, wrinkles, etc., the original document outline cannot be used to accurately cut the actual pattern, we use the function of the high- precision camera’s real-time shooting and contour extraction, thus to accurately identify and extract real-time work piece image contours for precise nesting.
Projection Positioning System

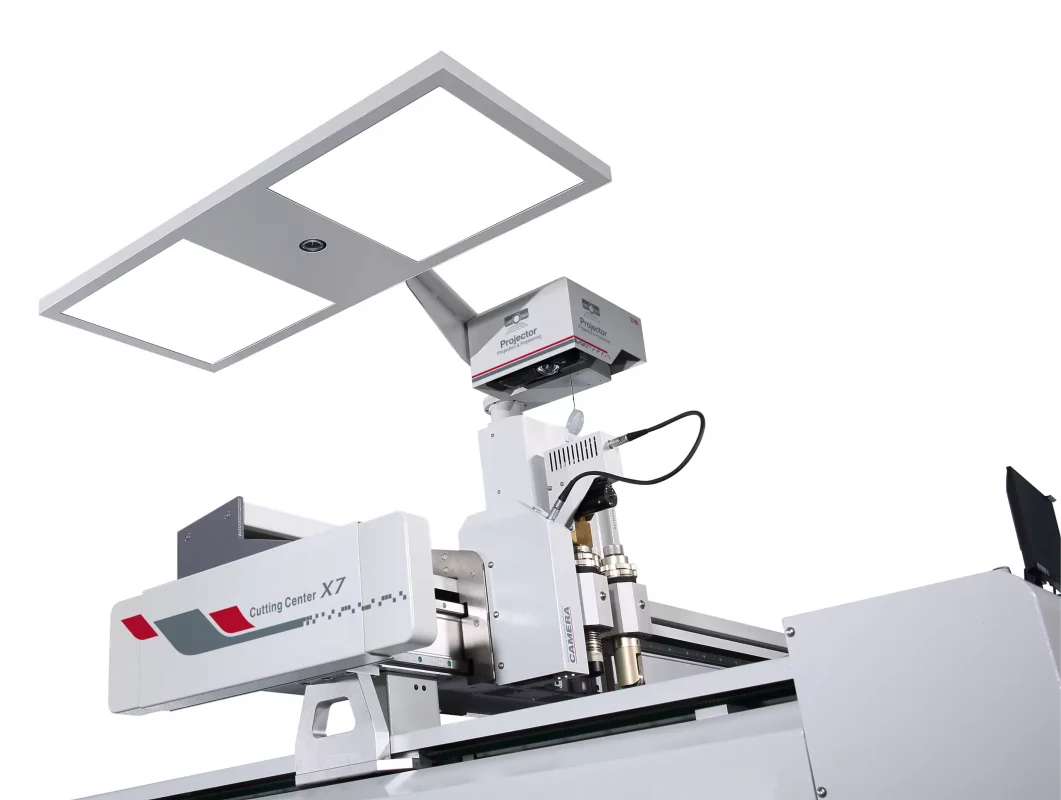

In actual cutting process, it is difficult for users to accurately align the material with the cutting pattern. This system can project the cutting pattern on the processing table with 1:1, which is convenient for users to feed feed and align the material. The user can also place the irregular material into the projection area for the alignment cutting, which greatly improves the utilization of the material.
Prevent over-cutting function
Preventing inner angles from over- cut, recovering graphic’s outline maximally.
File Management System
X7 CAM software for sealing industry can manage the processed documents including file name, processing time, quantity, materials, batches, etc., and generate barcode or QR code, which can be quickly called out by scanning code. It is convenient for future re- processing. The management of historic processed documents greatly facilites users for operation.
Available tools
